Decision Trees for Regression in Energy Systems

Decision trees are versatile machine learning algorithms applicable to both classification and regression tasks. In the context of energy systems, regression trees can be used to predict continuous variables such as energy consumption, electricity prices, or renewable energy generation. They offer interpretability, handle non-linear relationships, and require minimal data preprocessing.

How Regression Trees Work:

Unlike classification trees that predict a categorical outcome, regression trees predict a continuous value. Instead of assigning a class label to each leaf node, a regression tree assigns the average of the target variable for all data points within that leaf.

  1. Recursive Partitioning: The algorithm recursively splits the data based on features to minimize the variance within each resulting subset (leaf node). The goal is to create homogenous leaf nodes where the target variable values are as similar as possible.
  2. Splitting Criteria: Common splitting criteria include mean squared error (MSE) and mean absolute error (MAE). The algorithm searches for the feature and split point that minimizes the chosen error metric.
  3. Stopping Criteria: The recursive partitioning stops when a predefined criterion is met. This could be a maximum depth for the tree, a minimum number of samples required in a leaf, or a threshold for the improvement in error reduction.
  4. Prediction: To predict the target variable for a new data point, the algorithm traverses the tree based on the feature values of the data point until it reaches a leaf node. The predicted value is the average of the target variable for all training data points in that leaf.

Treating the Regression Response:

The key difference in handling the regression response lies in the leaf nodes. Instead of predicting a class label, the leaf node predicts the average value of the target variable for all training instances that fall within that leaf. This averaging smooths out the predictions and provides a continuous output.

Python Example using Scikit-learn and Matplotlib:

import numpy as np
import matplotlib.pyplot as plt
from sklearn.tree import DecisionTreeRegressor
from sklearn.model_selection import train_test_split
from sklearn.metrics import mean_squared_error

# Generate synthetic data (example: predicting energy consumption based on temperature)
np.random.seed(0)
X = np.sort(5 * np.random.rand(80, 1), axis=0)  # Temperature
y = np.sin(X).ravel() + np.random.normal(0, 0.2, X.shape[0]) # Energy Consumption (with noise)

# Split data into training and testing sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# Create and train the decision tree regressor
regressor = DecisionTreeRegressor(max_depth=3) # Limit depth to prevent overfitting
regressor.fit(X_train, y_train)

# Make predictions on the test set
y_pred = regressor.predict(X_test)

# Evaluate the model
mse = mean_squared_error(y_test, y_pred)
print(f"Mean Squared Error: {mse}")

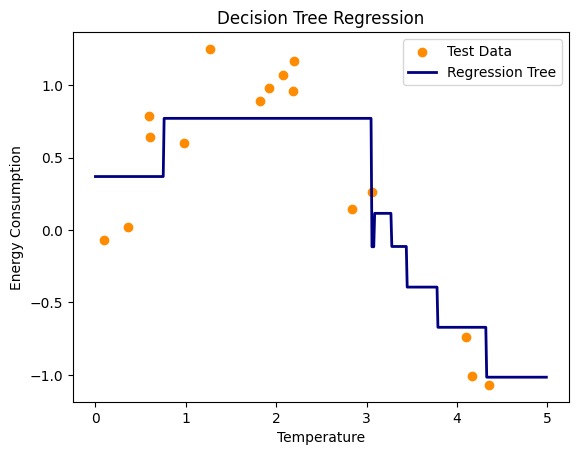

# Plot the results
X_grid = np.arange(0.0, 5.0, 0.01)[:, np.newaxis]
y_grid = regressor.predict(X_grid)

plt.scatter(X_test, y_test, color="darkorange", label="Test Data")
plt.plot(X_grid, y_grid, color="navy", linewidth=2, label="Regression Tree")
plt.xlabel("Temperature")
plt.ylabel("Energy Consumption")
plt.title("Decision Tree Regression")
plt.legend()
plt.show()
Mean Squared Error: 0.11363041621546605

Summary of Decision Trees for Regression in Energy Systems

Applications in Energy Systems:

  • Predicting building energy consumption: Based on factors like weather, occupancy, and building characteristics.
  • Forecasting solar and wind power generation: Using historical weather data and plant specifications.
  • Optimizing energy storage dispatch: Predicting future energy demand and prices to manage charging and discharging cycles.
  • Predicting electricity price fluctuations: Based on supply, demand, and market conditions.

Advantages of Decision Trees:

  • Interpretability: Easy to understand and visualize the decision-making process.
  • Handles non-linear relationships: Can capture complex relationships between features and the target variable.
  • Minimal data preprocessing: Handles missing values and different feature scales relatively well.

Disadvantages of Decision Trees:

  • Prone to overfitting: Can create overly complex trees that memorize the training data, leading to poor generalization.
  • Sensitive to small changes in data: Minor variations in the training data can lead to significantly different tree structures.
  • Can create biased trees if some classes dominate: Techniques like balancing or weighting can mitigate this issue.

By understanding the principles and limitations of decision tree regression, energy system researchers and practitioners can effectively leverage this powerful tool for various predictive modeling tasks. Careful consideration of hyperparameters like tree depth and splitting criteria is crucial for achieving optimal performance and avoiding overfitting.
